MATERIAL FAMILY

Carbon steel

From clean cold-rolled sheet to structural plate and specialty steel. Explore every steel option in our catalog and open the specifications for the material that fits your part.

Browse steel Compare materials
9 catalog optionsSheet, plate & specialty stock
Laser-cut steel panels and fabricated parts
Steel for panels, brackets, frames, and wear parts.

EXPLORE THE CATALOG

Find your steel

9 material and finish options. Open a material for its thicknesses, properties, fabrication limits, and availability.

9 options

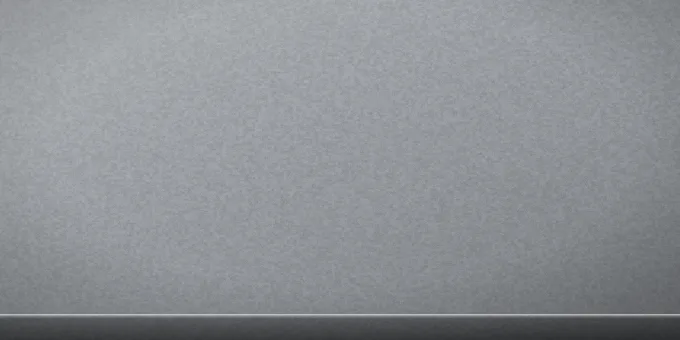

A1008 Cold-Rolled Steel — Cold-rolled surfaceCold-rolled

Precision panels & enclosures

A1008 CR

A1008 Cold-Rolled Steel

Smooth cold-rolled sheet for precision brackets, panels, and powder-coated enclosures. Explore available gauges and fabrication data.

Catalog thickness
0.024–0.135″
Thickness options
10
View material specs

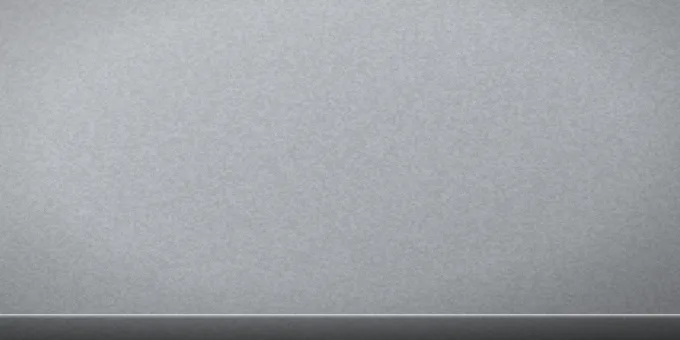

A1008 Electro-Galvanized Steel — Electro-galvanized surfaceElectro-galvanized

Smooth zinc-coated sheet

A1008 EG

A1008 Electro-Galvanized Steel

A cold-rolled base with a thin, uniform zinc coating. Explore a smooth coated surface for painted or powder-coated parts.

Catalog thickness
0.024–0.075″
Thickness options
5
View material specs
G90 Galvanized Steel — Hot-dip galvanized surfaceHot-dip galvanized

Exterior panels & brackets

G90 HDG

G90 Galvanized Steel

Hot-dip galvanized sheet for ductwork, panels, and exterior brackets. Review the coating, thicknesses, and fabrication specifications.

Catalog thickness
0.024–0.135″
Thickness options
5
View material specs
A36 / A1011 Hot-Rolled, P&O — Pickled & oiled surfacePickled & oiled

Frames, weldments & brackets

A36 HR P&O

A36 / A1011 Hot-Rolled, P&O

Hot-rolled steel with the mill scale removed by pickling, then oiled. A clean starting surface for structural parts and weldments.

Catalog thickness
0.060–0.500″
Thickness options
9
View material specs
A36 / A1011 Hot-Rolled, Mill Finish — Mill scale surfaceMill scale

Structural plate & weldments

A36 HR Mill

A36 / A1011 Hot-Rolled, Mill Finish

Hot-rolled sheet and plate with mill scale intact. Explore economical stock for heavy brackets, frames, and fabricated assemblies.

Catalog thickness
0.060–0.750″
Thickness options
12
View material specs

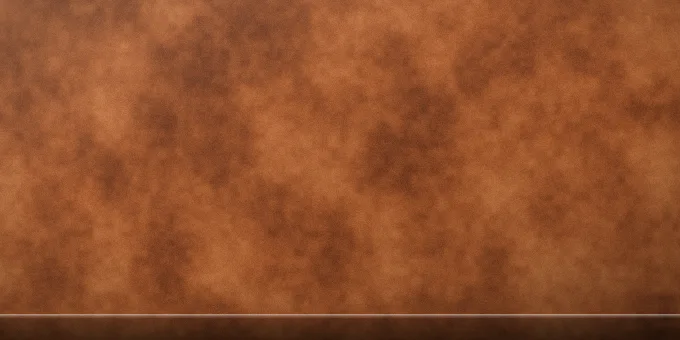

Corten Weathering Steel — Patina shown surfacePatina shown

Architectural panels & signage

A588 / A606-4

Corten Weathering Steel

Weathering steel for panels, planters, and signage designed around a rust patina. Review the material specifications for your application.

Catalog thickness
0.060–0.250″
Thickness options
6
View material specs
A572 / HSLAS Grade 50 — Mill finish surfaceMill finish

Higher-strength structural parts

A572 Gr 50

A572 / HSLAS Grade 50

High-strength low-alloy plate with a catalog yield strength of 50 ksi. Explore structural parts and weldments requiring more strength than A36.

Catalog thickness
0.188–0.313″
Thickness options
3
View material specs
AR500 Abrasion-Resistant Steel — Mill finish surfaceMill finish

Wear liners & abrasion resistance

AR500

AR500 Abrasion-Resistant Steel

Through-hardened abrasion-resistant plate for wear liners and chute plates. Plan flat parts and review the grade’s fabrication limits.

Catalog thickness
0.250–0.500″
Thickness options
3
View material specs

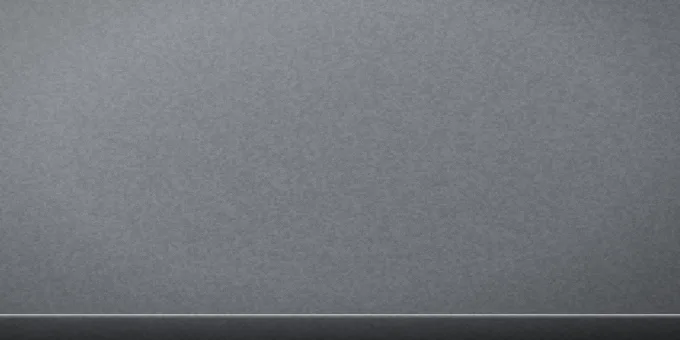

Spring Steel (1075 / 1095) — Annealed surface surfaceAnnealed surface

Flat springs, shims & wear strips

1075 / 1095

Spring Steel (1075 / 1095)

Thin high-carbon stock in 1075 annealed and 1095 hardened conditions. Compare the tempers for laser-cut springs, shims, and wear strips.

Catalog thickness
0.005″
Thickness options
1
View material specs

AT A GLANCE

Compare steel materials

See how strength, corrosion resistance, formability, and more compare. Choose any two catalog options, then open a material for its full specifications.

Material performance

Compare two materials across eight properties.

1–5 catalog rating
A1008 CR compared with A36 HR P&OEight material properties rated from 1 to 5. Higher ratings are farther from the center. A1008 CR uses a solid line with circles; A36 HR P&O uses a dashed line with squares. Exact scores are in the adjacent table.StrengthCorrosionresistanceWeldabilityToughnessFormabilityMachinabilityHeattreatingStrength-to-weight ratio12345
Catalog ratings, out of 5
PropertyA1008 CR A36 HR P&O
Strength3 / 53 / 5
Corrosion Resistance1 / 51 / 5
Weldability5 / 55 / 5
Toughness5 / 55 / 5
Formability5 / 53 / 5
Machinability3 / 53 / 5
Heat Treating1 / 51 / 5
Strength-to-Weight Ratio1 / 52 / 5

Ratings are relative to the materials in our catalog: 1 is the low end, 5 is the high end. Use the specifications below and each material’s page for measured properties and fabrication limits.

Specifications by material

Scroll sideways to compare all columns

MaterialTypical tensileTypical yieldCatalog thicknessFabrication considerations
A1008 CR 44 ksi30 ksi0.024–0.135″Formable sheet; check the selected gauge.
A1008 EG 44 ksi30 ksi0.024–0.075″Zinc-coated; check forming and finish requirements.
G90 HDG 45 ksi33 ksi0.024–0.135″Hot-dip zinc coating; review per-gauge bend data.
A36 HR P&O 58–80 ksi36 ksi0.060–0.500″Hot-rolled P&O; check the selected gauge.
A36 HR Mill 58–80 ksi36 ksi0.060–0.750″Mill scale intact; review surface preparation.
A588 / A606-4 70 ksi50 ksi0.060–0.250″Weathering steel; check grade-specific bend data.
A572 Gr 50 65 ksi50 ksi0.188–0.313″No standard bending listed; review fabrication limits.
AR500 ~250 ksi~200 ksi0.250–0.500″Plan flat parts; no standard bending listed.
1075 / 1095 temper dependent—0.005″Cut only; no forming or hardware. Properties depend on temper.

Typical properties from the material catalog. Thickness ranges cover catalog entries; availability and forming limits depend on the selected grade and gauge. Spring steel properties vary by temper; open its material page to compare annealed and hardened stock.

FINISH YOUR PART

Finishes & fabrication

Explore the process, then check compatibility on the individual material page.

Fiber laser cutting

Explore steel cutting capabilities and design guidance for sheet, plate, and flat parts.

Explore laser cutting

Powder coating

Explore colors, surface preparation, and coating allowances. Check compatibility for your steel grade and finish.

Explore powder coating

Forming & bend data

Explore press-brake capabilities. Use each material’s per-gauge data to check your part’s bend requirements.

Explore CNC bending

CHOOSING A MATERIAL

Steel questions

What’s the difference between cold-rolled, P&O, and mill-finish steel?

A1008 cold-rolled has a smooth surface and is used for panels and enclosures. A36 / A1011 P&O is hot-rolled stock with mill scale removed and an oiled surface. A36 / A1011 mill finish retains the mill scale. Compare each material’s thicknesses, properties, and surface preparation needs.

Which zinc-coated steel options are available?

The catalog includes A1008 electro-galvanized and G90 hot-dip galvanized. Each material page lists its coating, thickness options, and fabrication data.

Where can I find specialty steel?

Explore Corten weathering steel for architectural applications, AR500 for abrasion-resistant flat parts, and 1075 / 1095 spring steel for thin spring and shim stock. For higher-strength structural plate, see A572 / HSLAS Grade 50.

Where can I check a thickness or bend requirement?

Open the individual material and select your thickness to see its fabrication data. AR500, Grade 50, and spring steel have different processing limits from mild steel; review the selected material’s specifications. You can also browse the complete sheet metal catalog.

Have a part in mind?

Upload your design, or ask us about a steel grade or thickness you don’t see here.

Get a quote
