Metal Fabrication & 3D Printing Capabilities

Our Services

/0.1

Fiber-precision cuts to ±0.005″.
From DXF to finished part.

Al 5052, 6061, Steel, Stainless 0.020″ – 0.250″ thickness Zero tooling cost

Fiber Laser
Cutting

→

Key Specifications

Tolerance

±0.005″

Tight Tol.

±0.002″

Min Thickness

0.020″

Max Sheet

60″×120″

Learn More →

What We Offer

✓ Aluminum 5052-H32 & 6061-T6 primary stock
✓ Mild steel, stainless 304/316, and brass
✓ DXF and STEP formats ONLY
✓ Gang-sheet nesting for volume cost savings
✓ No minimum order — single-piece welcome
✓ Proof drawing before production starts

Common Applications

→ Rack mount panels (1U–8U)
→ XLR, HDMI, Speakon connector plates
→ AV & broadcast faceplates
→ Chassis & enclosure blanks
→ OEM panel production runs
→ Gaskets, brackets, custom shapes

/0.2

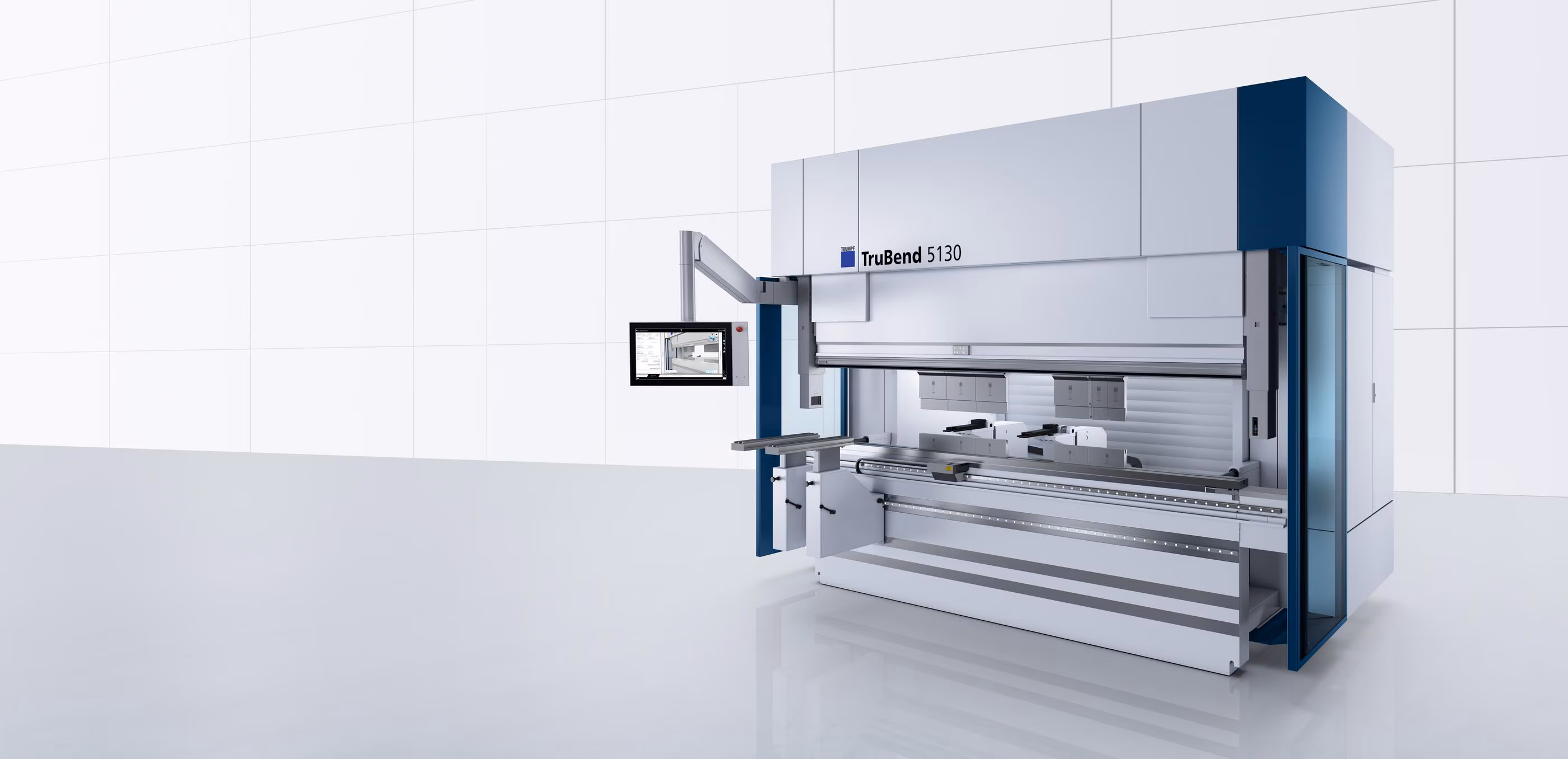

Precision CNC bending for enclosures,
chassis, and flanged panels.

Angle tolerance ±0.5° 30°–135° bend range Integrated with laser cutting

CNC Press
Brake

→

Key Specifications

Angle Tol.

±0.5°

Bend Range

30°–135°

Max Length

120″

Min Flange

3× thickness

Learn More →

What We Offer

✓ Air-bend dies for a wide range of radii
✓ Any number of bends per part
✓ Aluminum, steel & stainless
✓ Springback compensation via CNC
✓ Integrated with laser cutting — same day
✓ Free bend calculators at calculators.html

Common Applications

→ Rack flanges & L-brackets
→ Chassis & enclosures
→ Stage box housings
→ Wall mount brackets
→ Stiffening ribs & returns
→ Custom formed panels

/0.3

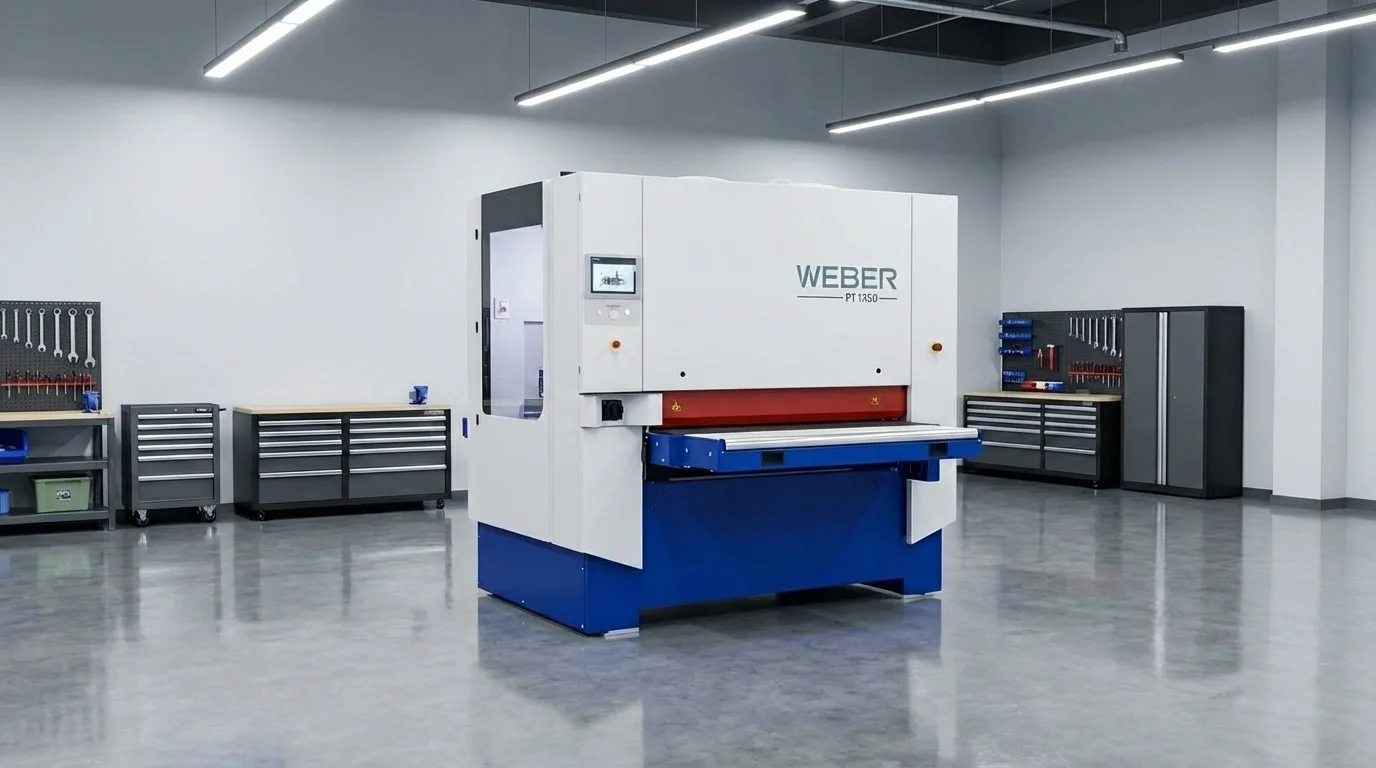

Automated metal finishing, edge rounding,
and premium surface grinding.

Hans Weber PT 1350 Aluminum, steel & stainless Slag & dross removal

Metal
Finishing

→

Key Specifications

Machine

Weber PT 1350

Max Width

1350mm (53″)

Thickness

0.5 - 100mm

Processes

Grind, Edge, Oxide

Learn More →

Materials We Deburr

✓ 5052-H32 & 6061-T6 aluminum
✓ 7075-T6 aluminum with finish review
✓ A1008 cold-rolled mild steel
✓ A36 hot-rolled & pickled/oiled steel
✓ 304 & 316 stainless steel
✓ G90 galvanized & electro-galvanized steel

Flat, bare production stock only. Pre-weathered, heavily rusted, painted, or previously powder-coated material is not eligible for standard automated deburring.

Common Applications

→ Ready-to-paint enclosures
→ Architectural panels
→ Medical & food-grade components
→ Safe-edge handling parts
→ Premium brushed aesthetic parts
→ Deslagged heavy steel brackets

/0.4

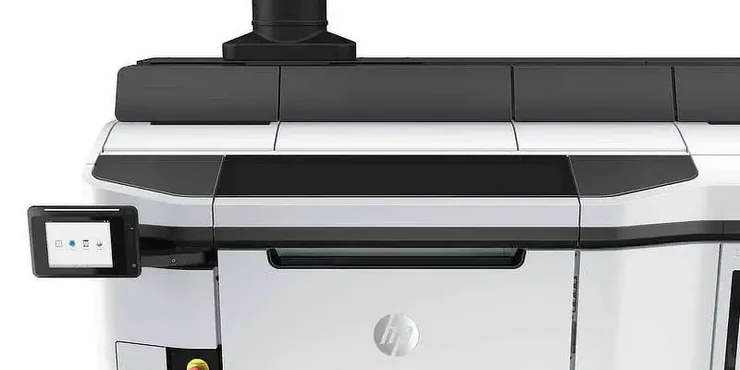

Industrial additive manufacturing for
functional parts and production runs.

FDM, SLA, MJF processes XY accuracy ±0.2 mm 1–3 day lead time

3D
Printing

→

Key Specifications

XY Accuracy

±0.2 mm

Layer Res.

0.1 mm

Build Vol.

350×350×400mm

Lead Time

1–3 Days

Learn More →

Materials

✓ PLA & PETG — fast prototyping
✓ ABS / ASA — impact & UV resistant
✓ Nylon 12 (MJF) — production parts
✓ SLA Resin — ultra-fine detail
✓ TPU — flexible gaskets & grips
✓ Carbon fiber filled — structural

Common Applications

→ Functional prototypes
→ Jigs & fixtures
→ Custom enclosures & covers
→ Insert-molded hardware parts
→ Snap-fit assemblies
→ Production-intent components

/0.5

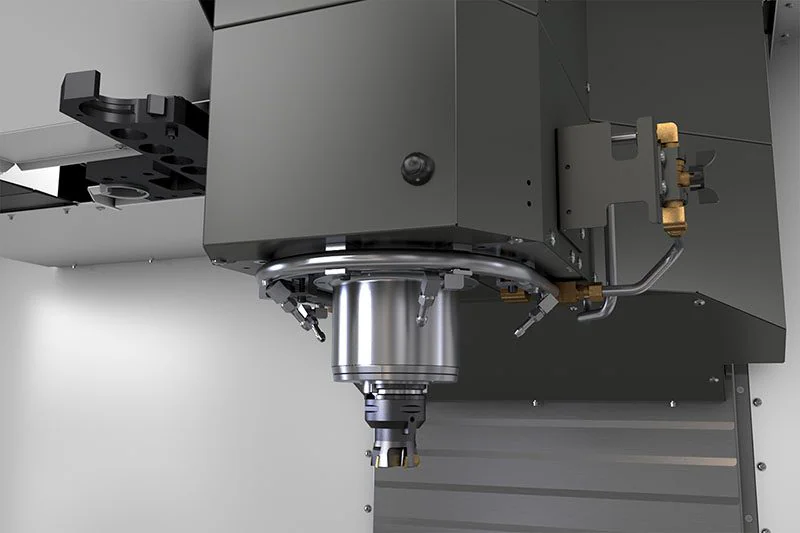

High-precision 3-axis and 5-axis
milling & turning operations.

Tolerances down to ±0.001″ Aluminum, Steel, Plastics Complex geometries

CNC
Machining

→

Key Specifications

Standard Tol.

±0.005″

Tight Tol.

±0.001″

Max Part Size

40″×20″×20″

Spindle

12k RPM

Learn More →

What We Offer

✓ 3-axis and 5-axis indexing
✓ CNC turning with live tooling
✓ Wide range of aluminum & steel alloys
✓ Engineering plastics (Delrin, PEEK)
✓ Tapping, reaming, countersinking
✓ Secondary surface finishing available

Common Applications

→ Complex housings & enclosures
→ Precision linkages & brackets
→ Functional testing prototypes
→ Optical mounts & plates
→ Custom shaft and pin turning
→ Heatsinks & RF shielding
