Hot-rolled, pickled & oiled, and cold-rolled steel all start as the same slab. What separates them is how much the mill does after the strip leaves the hot mill. That decides thickness tolerance, surface, price, and how the part behaves on the laser, in the brake, and under powder.
"Hot rolled" and "cold rolled" sound like two kinds of steel. They are two stopping points on one production line. A cold-rolled coil is a hot-rolled coil that went through more equipment. A pickled-and-oiled coil is a hot-rolled coil that stopped one step short of the cold mill.
That matters for designers because most of the differences people attribute to the metal are really differences in processing: the scale on the surface, how tightly the thickness is held, how flat the sheet lies, how thin it can be made, and what it costs. The chemistry of a low-carbon A1011 hot-rolled coil and an A1008 cold-rolled coil can be nearly identical. The mill history is what you are actually choosing.
Continuous-cast carbon steel, roughly 8 to 10 inches thick, cut to length.
Reheated, rolled to sheet thickness above recrystallization, cooled, coiled.
Sold as-rolled. Blue-gray oxide scale intact. A36 / A1011.
Scale dissolved in hydrochloric acid, rinsed, dried, lightly oiled.
Same mechanicals as HR. Bare gray steel under a thin oil film.
Pickled coil re-rolled cold, annealed, temper passed, oiled. A1008.
Hot rolling is the mill's way of turning a thick slab into a thin strip quickly. It works because steel above roughly 1,700 °F is soft, recrystallizes as it deforms, and can be reduced by enormous amounts per pass without cracking or work hardening.
A brittle blue-gray layer of iron oxides, typically a few thousandths thick. It is harder than the steel under it, poorly bonded, and non-uniform. It flakes in the press brake, blows out unpredictably under an oxygen laser cut, and lifts any coating applied over it.
ASTM A568 permits wider thickness variation for hot-rolled sheet than for cold-rolled sheet at the same nominal. Edges are rounded, flatness is looser, and coil set or crossbow is common in lighter gauges.
Hot-rolled A36 is specified to a 36 ksi minimum yield and 58 to 80 ksi tensile. A1011 CS Type B is ordered to chemistry with typical, not guaranteed, properties. Neither is work hardened; both are soft, ductile, and easy to weld.
The range is the other defining feature. Hot rolling is how all thick plate is made, and it is economical down to about 16 gauge. Below that the strip is too thin to control through the finishing train, which is why thin-gauge steel is almost always cold rolled.
Pickling is a chemical step, not a mechanical one. The hot-rolled coil is uncoiled and pulled through tanks of hot dilute hydrochloric acid that dissolve the mill scale, then rinsed, dried, and coated with a thin film of oil before it is recoiled. Nothing about the strip's thickness, grain, or strength changes.
Uniform bare gray steel with a slightly textured, sometimes faintly pitted finish where scale was removed. Consistent from sheet to sheet, so laser parameters, weld prep, and paint pretreatment behave predictably.
The oil film is a storage measure, not a finish. It slows flash rust for weeks in dry storage, not years in service. It must be removed before powder coating, painting, or adhesive bonding, and it produces smoke and can cause porosity if welded through.
P&O carries the same A36 / A1011 mechanicals and the same hot-rolled thickness tolerance as mill-finish stock. Pickling a few thousandths of scale off both faces makes the sheet marginally thinner, not more precise.
P&O exists because so many downstream processes hate scale. Stamping dies wear against it, welders grind it off, paint lines blast it, and lasers cut inconsistently through it. Paying the mill to remove it once is usually cheaper than every fabricator dealing with it separately. For a shop like Xeon, P&O is the hot-rolled product that behaves well on the laser and in the brake without the cold-rolled price.
Cold rolling starts where pickling ends. A pickled hot-rolled coil, usually 0.075 to 0.200 inch thick, is fed into a tandem cold mill and reduced by 50 to 90 percent with no heat added. The steel work hardens dramatically. Two more steps then put the ductility back and set the surface.
Thickness is held to roughly half the variation allowed for hot-rolled sheet, flatness is better, edges are square, and the sheet has less residual stress to release when the laser cuts it apart.
A consistent matte finish with no scale and no pickle texture. It is the best carbon-steel base for powder coat, paint, and plating, and the cleanest for hardware insertion and cosmetic parts.
Cold rolling is the only economical route to sheet under 16 gauge. Xeon stocks A1008 from 24 gauge, 0.024 inch, through 10 gauge, 0.135 inch.
Here is the same set of questions asked of all three products, answered the way they show up in a fabrication quote rather than a metallurgy textbook.
| Property | HR mill finish | HR pickled & oiled | Cold rolled |
|---|---|---|---|
| Xeon specification | ASTM A36 / A1011 | ASTM A36 / A1011 | ASTM A1008 CS Type B |
| Process after hot mill | None | Acid pickle, oil | Pickle, cold reduce, anneal, temper roll, oil |
| Surface | Blue-gray mill scale, non-uniform | Bare gray steel, light texture, oil film | Smooth matte, uniform, oil film |
| Thickness tolerance | Hot-rolled tolerance per A568 | Same as HR mill finish | Roughly half the hot-rolled allowance |
| Flatness and edges | Loosest; rounded edges; coil set possible | Often improved by the tension leveler on the pickle line | Best; square slit edges; lowest residual stress |
| Typical yield strength | 36 ksi min (A36) | 36 ksi min (A36) | About 30 ksi typical; not guaranteed for CS Type B |
| Thickness range at Xeon | 16 ga (0.060 in) to 3/4 in | 16 ga (0.060 in) to 1/2 in | 24 ga (0.024 in) to 10 ga (0.135 in) |
| Laser cutting | Scale makes oxygen cutting less consistent; more dross and edge variation, especially where scale is thick or loose | Clean, repeatable cuts with oxygen or nitrogen | Cleanest, most repeatable edge; best for fine features |
| Bending | Bends well but scale flakes, marks the die, and thickness variation shows up as angle variation | Bends well; thickness variation still hot-rolled | Most predictable angles and radii, especially thin gauge |
| Welding | Grind scale back from the joint for sound welds | Degrease the joint; oil causes smoke and porosity | Degrease the joint; thin sheet distorts most easily |
| Powder coat / paint prep | Must be blasted or chemically descaled first | Degrease and normal pretreatment | Degrease and normal pretreatment; best cosmetic result |
| Bare corrosion | Scale offers slight, unreliable protection | Rusts quickly once oil is gone | Rusts quickly once oil is gone |
| Relative cost per pound | Lowest | Low; pickling adds a modest extra | Highest of the three at the same gauge |
| Typical parts | Weldments, frames, base plates, brackets that get blasted and painted, thick plate | Frames, brackets, chassis, guards, and any hot-rolled part headed to powder coat | Enclosures, panels, covers, precision brackets, anything cosmetic or thin |
Every thickness below is a laser-ready sheet with real TRUMPF press-brake data behind it. Pick the material in the instant quote and the platform applies the correct bend deduction, minimum flange, and inside radius for that exact stock.

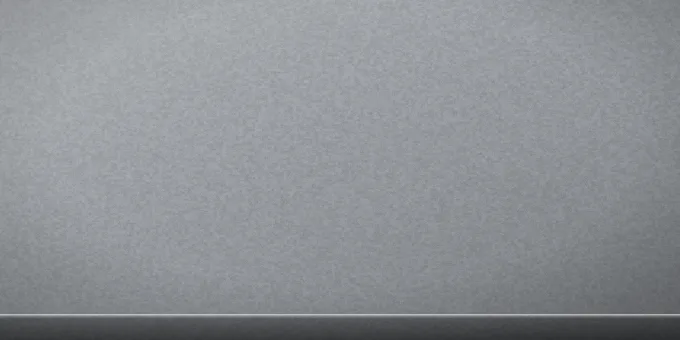

Smooth matte surface, tight thickness. The default for enclosures, panels, and anything that gets powder coated.
Scale removed at the mill. Structural steel that is clean enough to paint and consistent enough to cut and bend without surprises.
As-rolled with scale intact. The economical choice for thick plate and for parts that will be welded and blasted anyway.
Stock labels are Xeon inventory names. Nominal thickness, sheet size, and bendability are current as of the July 2026 catalog export and can change; the instant quote reflects what is available today. See the gauge chart for decimal equivalents and the size limits page for part envelope by material.
In the 16 to 10 gauge overlap all three will cut and bend. The right one depends on what happens to the part afterward: whether it is seen, coated, welded, or holding a tolerance.
| Assumption | Reality | Design consequence |
|---|---|---|
| Cold rolled is stronger | Commercial CR is annealed back to about 30 ksi yield. A36 hot rolled is 36 ksi minimum. | Do not swap A36 for A1008 CS in a load-bearing bracket without checking the calculation. |
| Hot rolled is "rougher steel" | The steel is the same; the scale is the roughness. P&O removes it. | If you like the price of hot rolled but not the surface, P&O is the answer, not cold rolled. |
| P&O is rust-proof because it is oiled | Mill oil is storage protection measured in weeks, and it must be removed before coating. | Every bare carbon steel part needs a finish or a rust-acceptable use. Pick one on the drawing. |
| Gauge is a dimension | Gauge is a label. The nominal decimal is the dimension and each product has its own tolerance around it. | Model and dimension in decimal inches. Let the tolerance come from the product's ASTM allowance. |
| Bend data is the same for all three | Hot-rolled and cold-rolled stock are separate families in Xeon's bend library, with their own inside radius and deduction per thickness. | Change the material in the quote before you trust the flat pattern or the bend simulation. |
| Mill scale protects the steel | Scale is cathodic to steel; where it cracks, the exposed steel corrodes faster than bare sheet would. | Bare mill-finish parts rust unevenly and stain. Blast and coat, or accept the look. |
| Thicker is always hot rolled, thinner is always cold rolled | True at the extremes, but 16 to 10 gauge is available all three ways. | The overlap is a real choice. Use the cards above. |
| Powder coat hides everything | Powder follows the surface. Pickle texture and scale pits read through thin coats; scale itself lifts the coat. | Cold rolled for cosmetic panels; P&O for coated structure; blast mill finish before coating. |
"Steel" or "mild steel" on a drawing forces someone else to choose between three products with different tolerances, surfaces, and prices. A complete callout names the specification and designation, the process condition, the decimal thickness, and the finish the part will receive.
Not in the sense most people mean. Cold reduction work-hardens the steel, but commercial cold-rolled sheet is then annealed and temper rolled, so the delivered yield strength of A1008 CS Type B is typically lower than A36 structural plate. Cold-rolled steel is more precise and more uniform, not stronger by default.
Pickled and oiled. The hot-rolled coil is run through an acid pickling line that dissolves the mill scale, then a thin film of oil is applied to slow rusting. The steel underneath is the same hot-rolled product; only the surface condition changes.
Only after the mill scale is removed by blasting or chemical treatment. Scale is loosely bonded and will lift the coating with it. Pickled-and-oiled or cold-rolled steel needs only degreasing and normal pretreatment.
It is rolled above its recrystallization temperature and then shrinks as it cools, and the hot strip mill cannot gauge the strip as precisely as a cold mill working at room temperature. ASTM A568 permits wider thickness variation for hot-rolled sheet than for cold-rolled sheet at the same nominal thickness.
For thin gauges, A1008 cold-rolled is the default: clean surface, tight thickness, predictable bends, and it takes powder well. Above about 10 gauge, hot-rolled P&O gives similar coatability at lower cost. Choose hot-rolled mill finish when the part will be welded and blasted anyway, or when thickness matters more than appearance.
Not in normal amounts. The laser vaporizes the thin film at the kerf. Heavier oil can smoke and leave residue on the surface near the cut, which is one more reason parts are degreased before finishing.
Not currently. Hot-rolled P&O is bendable through 1/4 inch and hot-rolled mill finish through 3/8 inch in our tooling library. Thicker plate is laser cut flat. The quoting platform flags any bend that is out of range for the selected material.
This guide is educational. Mill process temperatures, reductions, and line details are typical of North American flat-rolled production and vary by producer. It does not replace the governing ASTM specification, the mill test report, approved design allowables, welding qualification, inspection plan, or engineering approval for the actual part.
